The IGR series supports 4G/Wi-Fi/Ethernet networking, enabling functions such as remote access, protocol parsing, data collection and data uploading to the cloud.
Equipped with a variety of device interfaces and supporting driver protocols for multiple industrial control brands, it addresses most on-site equipment remote connection requirements.

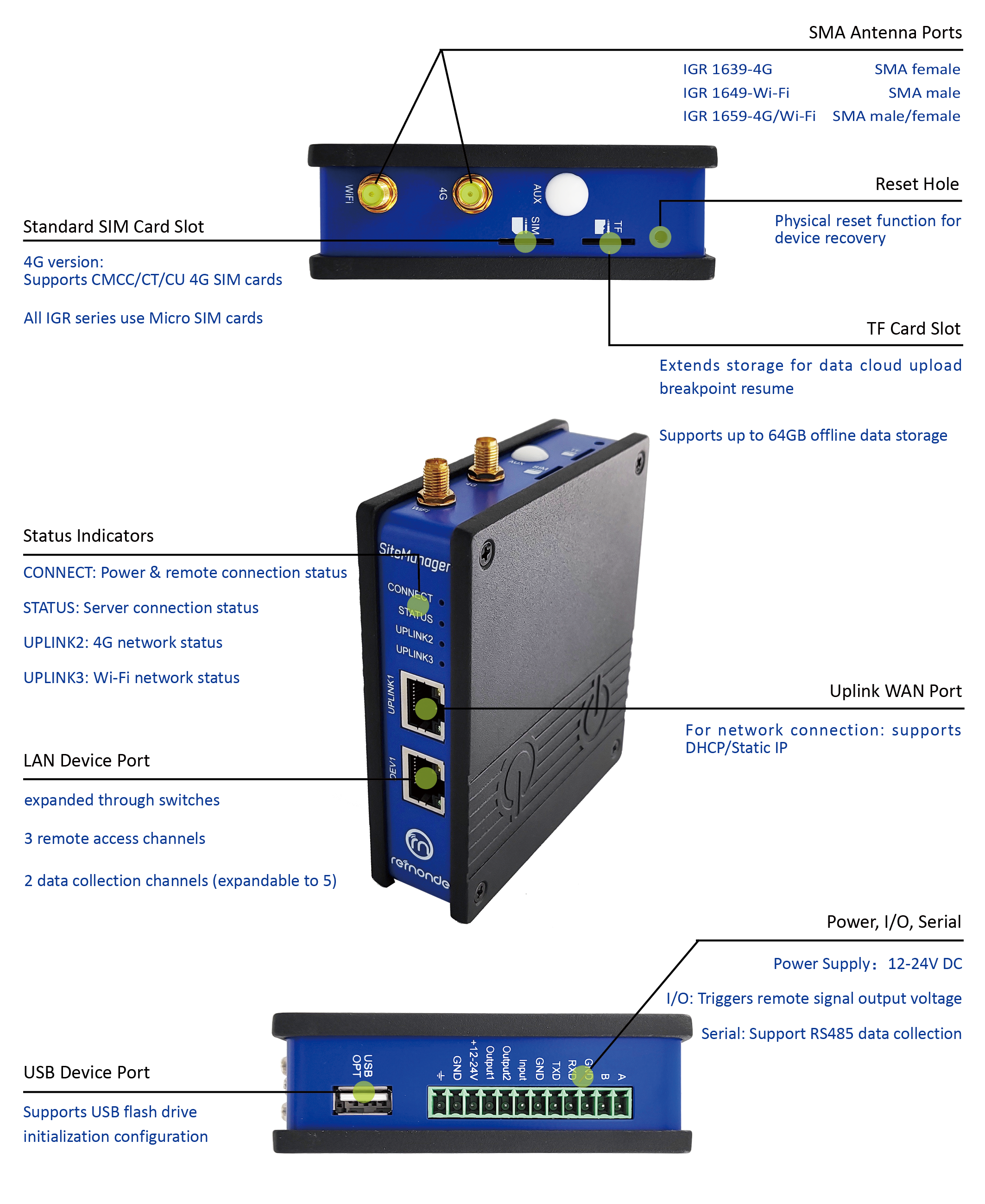

- Operating temperature: -25℃～+60℃
- Relative humidity: 5% to 95%
- Material: Metal casing
-Protection grade: IP20
- Mounting: DIN rail mounting bracket
- Normal operation altitude: Within 3000 meters
- 1-year warranty
- Power supply: 12-24V DC
- Ethernet ports: 2, 10/100 Mbit (1 Internet port/1 device port)
- USB port: 1, 2.0 full speed (host), no remote access capability
- Serial ports: 1 x RS232, 1 x RS485
- Power consumption: 6W
- Input: 1-channel digital input
- Output: 2-channel power voltage output
TF card slot: Data storage during network anomalies
- IGR-1639: Integrated SIM card module and Micro-SIM card slot, with standard RP-SMA female jack (female pin).
- IGR-1649&1659: Integrated Wi-Fi module, supporting 2.4/5GHz, with standard RP-SMA female jack (male pin).

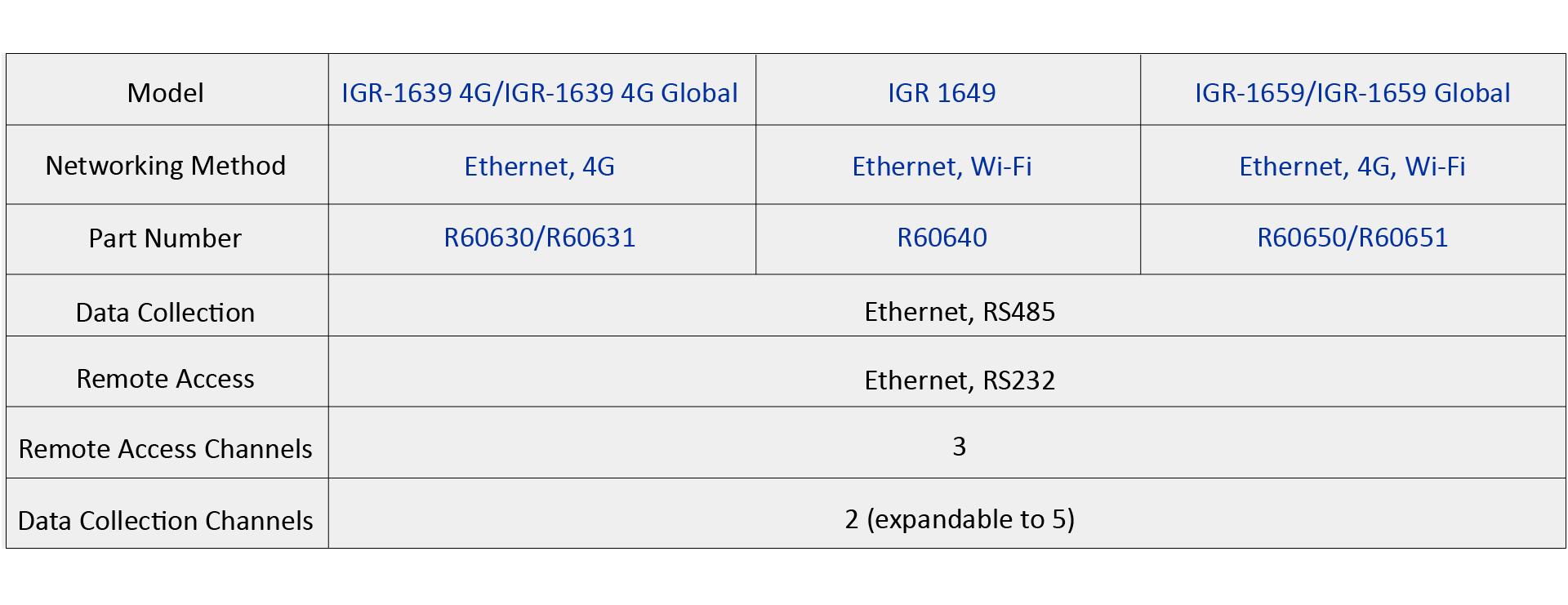

- IGR 1639-CN: Ethernet, 4G
- IGR 1649: Ethernet, 2.4G/5.8G Wi-Fi
- IGR 1659: Ethernet, 2.4G/5.8G Wi-Fi, 4G, GPS
- UPLINK (WAN): Supports DHCP clients, static IPs
- Remote SCADA: Support Secomea LogTunnel, quickly set up remote SCADA network architecture.
- Serial RS485 support for data acquisition.
• 4G CN (China Version) Supported Bands:
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
Recommended region: China
• 4G-G (Global Version) Supported Bands:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B17/B20/B28
LTE-TDD: B38/B39/B40/B41
TD-SCDMA: B34/B39
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800
Recommended regions: Consult for details
- Number of channels: 2 data collection channels, expandable to 5
- Supported protocols: OPC UA, Siemens S7, Rockwell CIP, Omron FINS, Mitsubishi Melsec, Beckhoff ADS, etc. Customized device protocols available.
- Supported cloud platforms: Remonde Cloud, customized private cloud support available.
- Edge computing: Basic operations (average, maximum, minimum, calculations, etc.), event-based alarms.
- Breakpoint resume: 100MB internal storage, expandable up to 64GB via memory card (not included).
- Supported protocols: OPC UA, Siemens S7, Rockwell CIP/Ethernet/IP, HTTP Get (JSON, XML, etc.), Simulator data virtualizer.
- Supported cloud platforms: AWS, Azure, Schneider Machine Advisor, Cumulocity, Alibaba Cloud, Remonde Cloud, Secomea DCC.
- Edge computing: Basic operations (average, maximum, minimum, calculations, etc.), event-based alarms.
- Breakpoint resume: 20MB internal storage, expandable up to 64GB via memory card (not included).
- Remote access: Supports controllers with TCP/UDP communication
- Mobile monitoring: Supports touchscreen operation via mobile phone; built-in VNC function compatible with touchscreens from Siemens, Allen-Bradley, Pro-Face, Schneider, Beckhoff, Mitsubishi, Omron, and all industrial PCs.
- Remote SCADA: Can act as master or slave data collector, supports drag-and-drop configuration to quickly build links between remote PLCs and central control SCADA systems, enabling centralized management with high security levels.
